EMDX³ 5A Energy Meter Three Phase Connection with CT Pulse Output MID Compliant

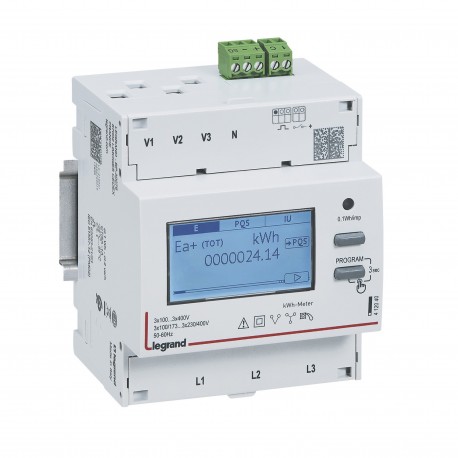

Three-phase energy meter EMDX³ - MID - TI connection 5A - 4mod
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 412042 Legrand energy meter measures active and reactive power consumption in three-phase electrical panels. These meters provide reliable data logging for energy management systems and internal cost allocation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Measurement type load profile (EF008844): No
- Height (EF000040): 92.4 mm
- Number of positions total (counter) (EF004442): 9
- With lock code (EF008846): Yes
- Degree of protection (IP) (EF005474): IP54
- Energy type (EF007135): Effective power and reactive power
- Pulse rate (EF008840): 0.001 Imp/kWh (kvarh)
- Accuracy class (EF008842): B
- Mounting method (EF000003): DRA (DIN-rail adapter)
- Pole type (EF008843): Three conductor/four conductor
- Tariff type (EF007550): Two-tariff
- Approval (EF008837): Measuring Instruments Directive
- Frequency (EF000416): 49 Hz
- Pulse output (EF008838): Optic
- Max. current (Imax) (EF000877): 6 A
- Pulse type (EF008839): S0
More info
▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 5 A |
| Max. current (Imax) | 6 A |
| Nominal voltage (Un) N-L | 90-265 V |
| Nominal voltage (Un) L-L | 156-460 V |
| Frequency | 49-61 Hz |
| Accuracy class | B |
| Pole type | Three conductor/four conductor |
| Model | Measurement transformer |
| Energy type | Effective power and reactive power |
| Suitable for | Purchase/supply |
| Tariff type | Two-tariff |
| Tariff control | External |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | Optical |
| Pulse type | S0 |
| Pulse rate | 0.001-10 Imp/kWh (kvarh) |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
|---|---|
| Width in number of modular spacings | 4 |
| Width | 71.2 mm |
| Depth | 66 mm |
| Height | 92.4 mm |
| Type of interface | None |
| With lock code | Yes |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP54 |
| Operating / setting temperature | -25-55 °C |
| Storage temperature | -25-70 °C |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Prewired | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-16 mm² |
| Label space/information surface | No |
| Connected object | No |
