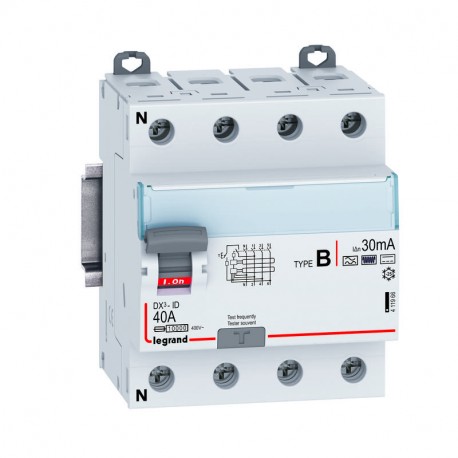

LEGRAND 411966 411966 LEGRAND DX3 4/40/30 B DIFFERENTIAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411966 LEGRAND DX3 4/40/30 B DIFFERENTIAL

411966

411966

LEGRAND

1 Pcs.

DX3 4/40/30 B DIFFERENTIAL Differential switch DX³ - 4P- 400V~- 40A - type B - 30mA - 4 mód. DX³ Differential Switch - 4P - 400V~ - 40A - Type B - 30mA - 4mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A differential circuit protection device is installed in commercial and industrial electrical panels to detect AC and pulsating DC earth leakage faults, preventing electric shock and fire hazards. The Legrand DX3 differential block, part number 411966, provides reliable monitoring and rapid tripping across multi-phase installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): No
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): B
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 3 kA
  • Number of poles (EF001391): 4
  • Short-time delayed tripping (EF003604): Yes
  • Rated fault current (EF002358): 0.03 A
  • Rated impulse withstand voltage Uimp (EF011980): 4000 kV

More info

▲

Product features

Protects people against indirect contacts.
It provides protection against fire hazards due to a persistent ground fault current.
It can also be used to control and isolate the installation.

General features

DX³-ID differential switches - upper input/bottom output - Comply with UNE EN 61008-1 standard - Type AC: detect alternating component defects - Type A: detect defects of alternating and continuous components (specialized circuits: kitchens, hobs, washing machines, etc.) - Hpi type: detect defects of alternating and continuous components (type A) with reinforced immunity to untimely triggering (environments with disturbances: computer circuits, lightning strikes, fluorescent lamps, etc.) - Type B: detect defects of alternating and continuous components and defects of direct current without ripple (machinery with speed variation, photovoltaic installations, call centers, medical equipment, etc.) - Suitable for auxiliaries, motorized controls and DX³ connection modules (except Type B) - Screw/screw connection: upper and lower output by terminals with screws
