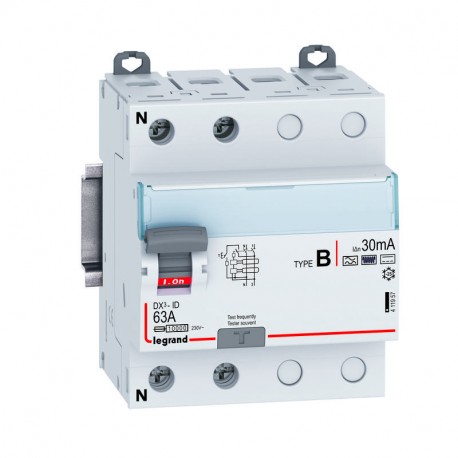

LEGRAND 411957 411957 LEGRAND DX3 2/63/30 B DIFFERENTIAL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411957 LEGRAND DX3 2/63/30 B DIFFERENTIAL

411957

411957

LEGRAND

1 Pcs.

DX3 2/63/30 B DIFFERENTIAL Differential switch DX³ - 2P- 230V~- 63A - type B - 30mA - 4 mód. DX³ Differential Switch - 2P - 230V~ - 63A - Type B - 30mA - 4mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

It protects people against direct and indirect contact and the risk of electric shock. Provides protection against fire hazards due to persistent ground defect current.

General features

DX³-ID differential switches - upper input/bottom output - Comply with UNE EN 61008-1 standard - Type AC: detect alternating component defects - Type A: detect defects of alternating and continuous components (specialized circuits: kitchens, hobs, washing machines, etc.) - Hpi type: detect defects of alternating and continuous components (type A) with reinforced immunity to untimely triggering (environments with disturbances: computer circuits, lightning strikes, fluorescent lamps, etc.) - Type B: detect defects of alternating and continuous components and defects of direct current without ripple (machinery with speed variation, photovoltaic installations, call centers, medical equipment, etc.) - Suitable for auxiliaries, motorized controls and DX³ connection modules (except Type B) - Screw/screw connection: upper and lower output by terminals with screws

ETIM for 411957 Circuit breakers and fuses (EC000003)
Feature Name Feature Value
Explosion-proof (EF004663) No
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Frequency (EF005455) 50 Hz
Selective protection (EF002561) No
Short-circuit breaking capacity (Icw) (EF002562) 10 kA
Ambient temperature during operating (EF007515) -25 °C
Degree of protection (IP) (EF005474) IP20
Leakage current type (EF002560) B
Voltage type (EF000187) AC
Additional equipment possible (EF008148) Yes
Mounting method (EF000003) DIN rail
Surge current capacity (EF002564) 3 kA
Number of poles (EF001391) 2
Short-time delayed tripping (EF003604) Yes
Rated fault current (EF002358) 0.03 A
Rated impulse withstand voltage Uimp (EF011980) 4000 kV
Built-in depth (EF000218) 44 mm
RAL-number (similar) (EF003882) 7035
Pollution degree (EF002570) 2
Width in number of modular spacings (EF002950) 4
Rated insulation voltage Ui (EF001366) 500 V
With interlocking device (EF007385) Yes
Connectable conductor cross section multi-wired (EF007343) 0.75 mm²
Rated current (EF000227) 63 A
Rated voltage (EF000228) 230 V
