View larger
Images are for illustrative purposes only. Please refer to data sheet for details

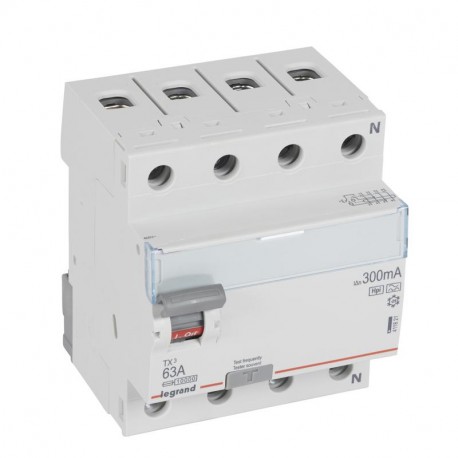

411821 LEGRAND TX3 ID 4P D 63A 300MA TO-HPI
411821
411821
LEGRAND
1 Pcs.
TX3 ID 4P D 63A 300MA TO-HPI
TX³ 63A Differential Switch, 4 Poles, 300mA, Type F, 400VAC, 4 Modules
TX³ Differential Switch - 4P - 400VAC - 63A - Type F - 300mA - 4mod
Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
General features
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Frequency (EF005455) | 50 Hz |
| Selective protection (EF002561) | No |
| Short-circuit breaking capacity (Icw) (EF002562) | 10 kA |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | F |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Mounting method (EF000003) | DIN rail |
| Surge current capacity (EF002564) | 3 kA |
| Number of poles (EF001391) | 4 |
| Short-time delayed tripping (EF003604) | Yes |
| Rated fault current (EF002358) | 0.3 A |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Built-in depth (EF000218) | 44 mm |
| RAL-number (similar) (EF003882) | 7035 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 4 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| With interlocking device (EF007385) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 0.75 mm² |
| Rated current (EF000227) | 63 A |
| Rated voltage (EF000228) | 400 V |
