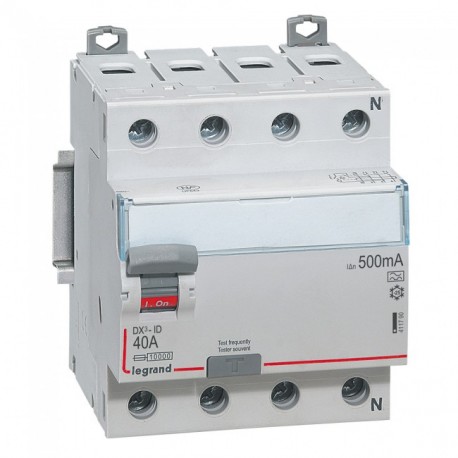

LEGRAND 411790 411790 LEGRAND DIFFERENTIAL DX3 4/40/500 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411790 LEGRAND DIFFERENTIAL DX3 4/40/500 TO

411790

411790

LEGRAND

1 Pcs.

DIFFERENTIAL DX3 4/40/500 TO DX³-ID 4 Pole 40A A Type RCD 500mA Neutral on Right-Hand Side DX³ Differential Switch - 4P - 400V~ - 40A - Type A - 500mA - 4mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part 411790 is a differential DX3 residual current device utilized in electrical distribution networks to guard personnel against indirect contact and mitigate insulation fault risks. These components monitor circuit balance to interrupt power instantly upon detecting abnormal current leakage to earth. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): No
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): A
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 0.25 kA
  • Number of poles (EF001391): 4
  • Short-time delayed tripping (EF003604): No
  • Rated fault current (EF002358): 0.5 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV

More info

▲
Conform to IEC 61008-1 * AC type : detect AC component faults * A type : detect AC and DC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles4
Rated voltage400 V
Rated current40 A
Rated fault current0.5 A
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionNo
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceYes
Frequency50 Hz
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings4
Built-in depth44 mm
Ambient temperature during operating-25-60 °C
Pollution degree2
Connectable conductor cross section multi-wired0.75-35 mm²
Connectable conductor cross section solid-core0.75-50 mm²
ColourGrey
RAL-number (similar)7035
Explosion-proofNo
Width71.2 mm
Height83 mm
Depth77.8 mm
degree of impact strength (IK)IK04
Storage temperature-40-70 °C
Electric supplying directionBy the top or bottom
Terminal marking indicationYes
Stress test conformity (1000V)Yes
Halogen freeYes
Connection typeScrewed terminal , Busbar and cable
Label space/information surfaceYes
