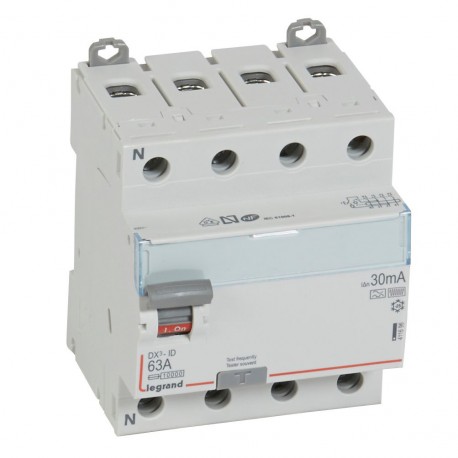

411696 LEGRAND DIFFERENTIAL DX3 4/63/30 HPI
411696
411696
LEGRAND
1 Pcs.
DIFFERENTIAL DX3 4/63/30 HPI
Inter. differential DX3 - 4P - 400V~- 63A - type-Hpi - 30mA - 4 mód.
DX³ Differential Switch - 4P - 400V~ - 63A - Hpi Type - 30mA - 4mod
Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protecting circuits against earth faults, the Legrand 411696 differential device provides essential ground fault protection in commercial and industrial power distribution networks to safeguard users from hazardous current leakage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Frequency (EF005455): 50 Hz
- Selective protection (EF002561): No
- Short-circuit breaking capacity (Icw) (EF002562): 10 kA
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): F
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Mounting method (EF000003): DIN rail
- Surge current capacity (EF002564): 3 kA
- Number of poles (EF001391): 4
- Short-time delayed tripping (EF003604): Yes
- Rated fault current (EF002358): 0.03 A
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
