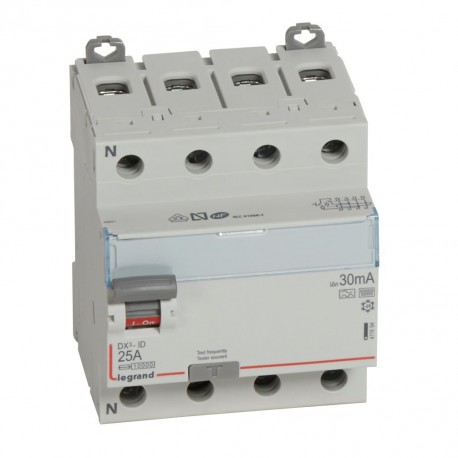

LEGRAND 411694 411694 LEGRAND DIFFERENTIAL DX3 4/25/30 HPI View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411694 LEGRAND DIFFERENTIAL DX3 4/25/30 HPI

411694

411694

LEGRAND

1 Pcs.

DIFFERENTIAL DX3 4/25/30 HPI Inter. differential DX3 - 4P - 400V~- 25A - type-Hpi - 30mA - 4 mód. DX³ Differential Switch - 4P - 400V~ - 25A - Hpi Type - 30mA - 4mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protection against ground faults and transient leakage currents in electrical installations is delivered by a differential switch, marketed as the Legrand 411694 DIFFERENTIAL DX3 4/25/30 HPI. This device is mounted within distribution enclosures to disconnect vulnerable circuits automatically whenever leakage thresholds are exceeded. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): No
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): F
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 3 kA
  • Number of poles (EF001391): 4
  • Short-time delayed tripping (EF003604): Yes
  • Rated fault current (EF002358): 0.03 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV

More info

▲

Product features

Tetrapolares 400 V~ Type Hpi - Sensitivity: 30 mA - In: 25 - Number of modules: 4

General characteristics

Circuit breakers DX3-ID - top entry/bottom exit - Comply with standard UNE en 61008-1 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous (type A) with immunity with regard to the false alarms. (environments with disturbances: circuits, computer, impact of lightning, fluorescent lamps, etc) - Type B: detect the defects of components, alternating and continuous, and the defects of direct current without ripple (machinery with varying speed, pv systems, call centers, medical supplies, etc) - Suitable for auxiliary controls motor and connection modules DX3 (except Type B) - Connection screw/screw: top entry and bottom exit for terminals with screws
