View larger

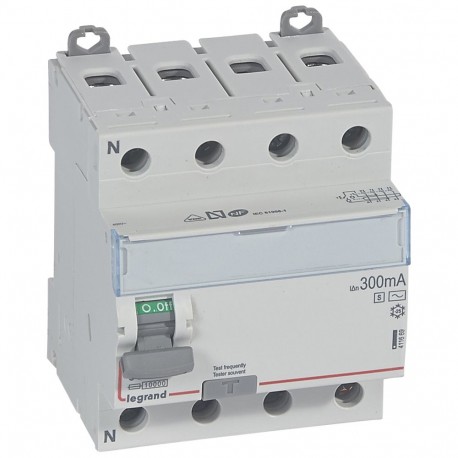

411669 LEGRAND DIFFERENTIAL DX3 4/63/300 AC-S
411669
411669
LEGRAND
1 Pcs.
Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 411669 differential DX3 device functions as an earth leakage monitor inside commercial and industrial electrical panels to prevent dangerous current flows and equipment damage. These protective devices trip the circuit when fault currents exceed safe thresholds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Frequency (EF005455): 50 Hz
- Selective protection (EF002561): Yes
- Short-circuit breaking capacity (Icw) (EF002562): 10 kA
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): AC
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Mounting method (EF000003): DIN rail
- Surge current capacity (EF002564): 3 kA
- Number of poles (EF001391): 4
- Short-time delayed tripping (EF003604): Yes
- Rated fault current (EF002358): 0.3 A
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
