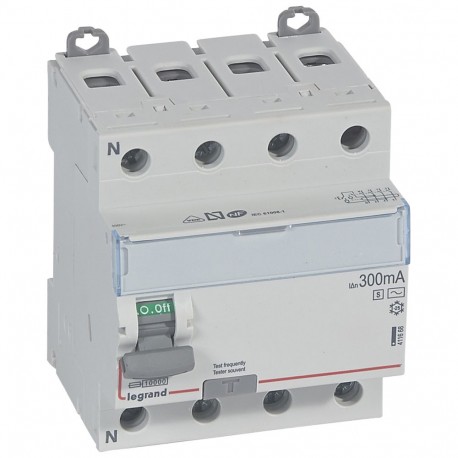

LEGRAND 411668 411668 LEGRAND DIFFERENTIAL DX3 4/40/300 AC-S View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411668 LEGRAND DIFFERENTIAL DX3 4/40/300 AC-S

411668

411668

LEGRAND

1 Pcs.

DIFFERENTIAL DX3 4/40/300 AC-S Inter. differential DX3 -4P - 400V~-40A -AC -300mA select.- 4 mód. Differential switch DX³ - 4P - 400V~ - 40A - Type AC - 300mA select. - 4mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for selective earth fault coordination, the Legrand 411668 differential DX3 unit prevents cascading power failures by ensuring only the faulty zone is isolated during an insulation breakdown. Such four-pole protective devices are essential in complex hierarchical distribution systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): Yes
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 3 kA
  • Number of poles (EF001391): 4
  • Short-time delayed tripping (EF003604): Yes
  • Rated fault current (EF002358): 0.3 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV

More info

▲

Product features

Tetrapolares 400 V~ Type AC - Sensitivity: 300 selective mA - In: 40 - Number of modules: 4

General characteristics

Circuit breakers DX3-ID - top entry/bottom exit - Comply with standard UNE en 61008-1 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous (type A) with immunity with regard to the false alarms. (environments with disturbances: circuits, computer, impact of lightning, fluorescent lamps, etc) - Type B: detect the defects of components, alternating and continuous, and the defects of direct current without ripple (machinery with varying speed, pv systems, call centers, medical supplies, etc) - Suitable for auxiliary controls motor and connection modules DX3 (except Type B) - Connection screw/screw: top entry and bottom exit for terminals with screws
