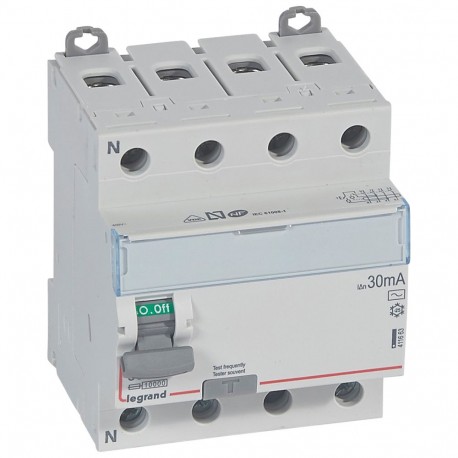

LEGRAND 411663 411663 LEGRAND DIFFERENTIAL DX3 4/80/30 AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411663 LEGRAND DIFFERENTIAL DX3 4/80/30 AC

411663

411663

LEGRAND

1 Pcs.

DIFFERENTIAL DX3 4/80/30 AC Inter. differential DX3 - 4P - 400V~- 80A - type AC - 30mA - 4 mód. DX³ Differential Switch - 4P - 400V~ - 80A - AC Type - 30mA - 4mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 411663 is a differential circuit protection unit designed to monitor installations for residual currents and isolate circuits rapidly during ground fault conditions to prevent hazards. These multi-pole units are fundamental for personnel safety in complex distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): No
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 0.25 kA
  • Number of poles (EF001391): 4
  • Short-time delayed tripping (EF003604): No
  • Rated fault current (EF002358): 0.03 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV

More info

▲

Product features

Tetrapolares 400 V~ Type AC - Sensitivity: 30 mA - In: 80 - Number of modules: 4

General characteristics

Circuit breakers DX3-ID - top entry/bottom exit - Comply with standard UNE en 61008-1 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous (type A) with immunity with regard to the false alarms. (environments with disturbances: circuits, computer, impact of lightning, fluorescent lamps, etc) - Type B: detect the defects of components, alternating and continuous, and the defects of direct current without ripple (machinery with varying speed, pv systems, call centers, medical supplies, etc) - Suitable for auxiliary controls motor and connection modules DX3 (except Type B) - Connection screw/screw: top entry and bottom exit for terminals with screws
