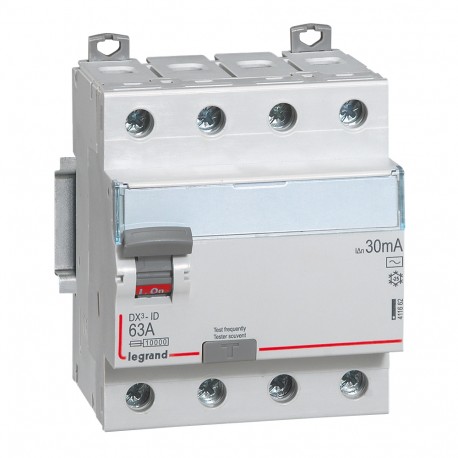

411662 LEGRAND DIFFERENTIAL DX3 4/63/30 AC
411662
411662
LEGRAND
1 Pcs.
DIFFERENTIAL DX3 4/63/30 AC
Inter. differential DX3 - 4P - 400V~- 63A - AC - 30mA - 4 mód.
DX³ Differential Switch - 4P - 400V~ - 63A - AC Type - 30mA - 4mod
Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Tetrapolares 400 V~ Type AC - Sensitivity: 30 mA - In: 63 - Number of modules: 4General characteristics
Circuit breakers DX3-ID - top entry/bottom exit - Comply with standard UNE en 61008-1 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous (type A) with immunity with regard to the false alarms. (environments with disturbances: circuits, computer, impact of lightning, fluorescent lamps, etc) - Type B: detect the defects of components, alternating and continuous, and the defects of direct current without ripple (machinery with varying speed, pv systems, call centers, medical supplies, etc) - Suitable for auxiliary controls motor and connection modules DX3 (except Type B) - Connection screw/screw: top entry and bottom exit for terminals with screws| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Frequency (EF005455) | 50 Hz |
| Selective protection (EF002561) | No |
| Short-circuit breaking capacity (Icw) (EF002562) | 10 kA |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | AC |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Mounting method (EF000003) | DIN rail |
| Surge current capacity (EF002564) | 0.25 kA |
| Number of poles (EF001391) | 4 |
| Short-time delayed tripping (EF003604) | No |
| Rated fault current (EF002358) | 0.03 A |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Built-in depth (EF000218) | 44 mm |
| RAL-number (similar) (EF003882) | 7035 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 4 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| With interlocking device (EF007385) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 0.75 mm² |
| Rated current (EF000227) | 63 A |
| Rated voltage (EF000228) | 400 V |
