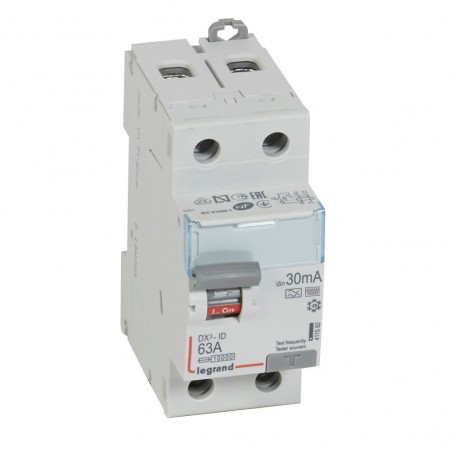

411592 LEGRAND DIFFERENTIAL DX3 2/63/30 HPI
411592
411592
LEGRAND
1 Pcs.
DIFFERENTIAL DX3 2/63/30 HPI
RCD DX³-ID - 2P 230 V~ - 63 A - 30 mA - Hpi type
DX³ Differential Switch - 2P - 230V~ - 63A - Hpi Type - 30mA - 2mod
Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.38
- Weight (g)241.00
Product characteristics
2-pole 230 V~F type (old Hpi type)
- Sensitivity : 30 mA
- Nominal Rating In : 63 A
- Number of modules : 2
General characteristics
RCCBs - DX³-ID - residual current circuit breakers 16 A to 100 A - AC, A, F and B types- Conform to IEC 61008 - 1, IEC 62423 (B type and F type)
- Compatible with prong-type and fork type supply busbars
- AC type : detect sinusoidal AC residual currents
- A type : detect sinusoidal AC and pulsating DC residual currents
- F type (High immunity) : detect AC and pulsating DC residual currents
- Enhanced immunity to unwanted tripping in disturbed environments
- Detection of high frequency fault currents
- B type : detect sinusoidal AC, pulsating DC and smooth DC residual currents
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Frequency (EF005455) | 50 Hz |
| Selective protection (EF002561) | No |
| Short-circuit breaking capacity (Icw) (EF002562) | 10 kA |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | F |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Mounting method (EF000003) | DIN rail |
| Surge current capacity (EF002564) | 3 kA |
| Number of poles (EF001391) | 2 |
| Short-time delayed tripping (EF003604) | Yes |
| Rated fault current (EF002358) | 0.03 A |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Built-in depth (EF000218) | 44 mm |
| RAL-number (similar) (EF003882) | 7035 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 2 |
| Rated insulation voltage Ui (EF001366) | 250 V |
| With interlocking device (EF007385) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 0.75 mm² |
| Rated current (EF000227) | 63 A |
| Rated voltage (EF000228) | 230 V |
