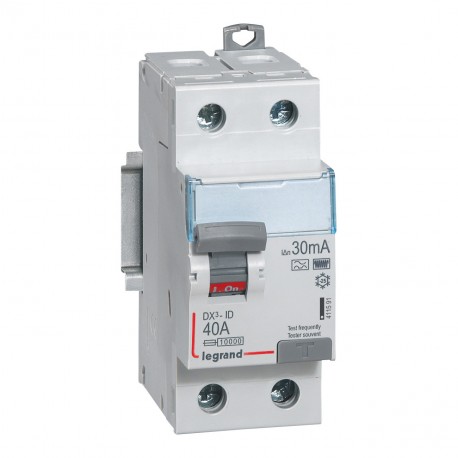

LEGRAND 411591 411591 LEGRAND DIFFERENTIAL DX3 2/40/30 HPI View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411591 LEGRAND DIFFERENTIAL DX3 2/40/30 HPI

411591

411591

LEGRAND

1 Pcs.

DIFFERENTIAL DX3 2/40/30 HPI RCD DX³-ID - 2P 230 V~ - 40 A - 30 mA - Hpi type DX³ Differential Switch - 2P - 230V~ - 40A - Hpi Type - 30mA - 2mod

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand differential DX3 module listed with part number 411591. This component functions as a residual current device designed to protect electrical circuits against earth fault currents and potential insulation hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof: No
  • Connectable conductor cross section solid-core: 0.75 mm²
  • Frequency: 50 Hz
  • Selective protection: No
  • Short-circuit breaking capacity (Icw): 10 kA
  • Ambient temperature during operating: -25 °C
  • Degree of protection (IP): IP20
  • Leakage current type: F
  • Voltage type: AC
  • Additional equipment possible: Yes
  • Mounting method: DIN rail
  • Surge current capacity: 3 kA
  • Number of poles: 2
  • Short-time delayed tripping: Yes
  • Rated fault current: 0.03 A
  • Rated impulse withstand voltage Uimp: 4 kV

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.38
  • Weight (g)241.00
Product characteristics
2-pole 230 V~
F type (old Hpi type)
  • Sensitivity : 30 mA
  • Nominal Rating In : 40 A
  • Number of modules : 2
General characteristics
RCCBs - DX³-ID - residual current circuit breakers 16 A to 100 A - AC, A, F and B types
  • Conform to IEC 61008 - 1, IEC 62423 (B type and F type)
  • Compatible with prong-type and fork type supply busbars
  • AC type : detect sinusoidal AC residual currents
  • A type : detect sinusoidal AC and pulsating DC residual currents
  • F type (High immunity) : detect AC and pulsating DC residual currents
  • Enhanced immunity to unwanted tripping in disturbed environments
  • Detection of high frequency fault currents
  • B type : detect sinusoidal AC, pulsating DC and smooth DC residual currents
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
