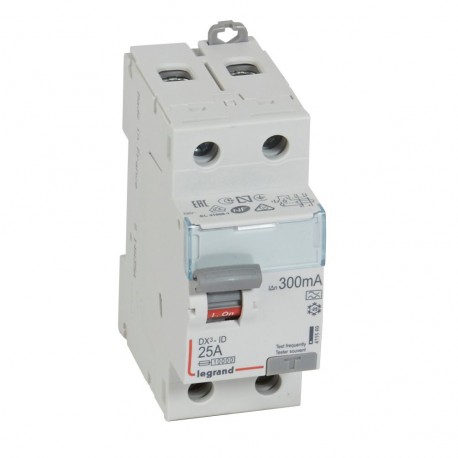

LEGRAND 411569 411569 LEGRAND DIFFERENTIAL DX3 2/25/300 TO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411569 LEGRAND DIFFERENTIAL DX3 2/25/300 TO

411569

411569

LEGRAND

1 Pcs.

DIFFERENTIAL DX3 2/25/300 TO DX³-ID 2 Pole 25A A Type RCD 300mA Differential Switch DX³ - ID - 2P - 230V~ - 25A - 300mA- Type A

Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 411569 differential device monitors power lines for insulation breakdown and earth leakage to protect operators and machinery from electrical hazards. Panel builders integrate these devices into distribution switchboards to fulfill mandatory electrical safety requirements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Frequency (EF005455): 50 Hz
  • Selective protection (EF002561): No
  • Short-circuit breaking capacity (Icw) (EF002562): 10 kA
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): A
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Mounting method (EF000003): DIN rail
  • Surge current capacity (EF002564): 0.25 kA
  • Number of poles (EF001391): 2
  • Short-time delayed tripping (EF003604): No
  • Rated fault current (EF002358): 0.3 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV

More info

▲
Conform to IEC 61008-1 * AC type : detect AC component faults * A type : detect AC and DC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles2
Rated voltage230 V
Rated current25 A
Rated fault current0.3 A
Rated insulation voltage Ui250 V
Rated impulse withstand voltage Uimp4 kV
Mounting methodDIN rail
Leakage current typeA
Selective protectionNo
Short-time delayed trippingNo
Short-circuit breaking capacity (Icw)10 kA
Surge current capacity0.25 kA
Voltage typeAC
With interlocking deviceYes
Frequency50 Hz
Additional equipment possibleYes
Degree of protection (IP)IP20
Width in number of modular spacings2
Built-in depth44 mm
Ambient temperature during operating-25-60 °C
Pollution degree2
Connectable conductor cross section multi-wired0.75-35 mm²
Connectable conductor cross section solid-core0.75-50 mm²
ColourGrey
RAL-number (similar)7035
Explosion-proofNo
Width35.6 mm
Height94.8 mm
Depth77.8 mm
degree of impact strength (IK)IK04
Storage temperature-40-70 °C
Electric supplying directionBy the top or bottom
Terminal marking indicationNo
Stress test conformity (1000V)Yes
Halogen freeYes
Connection typeScrewed terminal , Busbar and cable
Label space/information surfaceYes
