View larger
Images are for illustrative purposes only. Please refer to data sheet for details

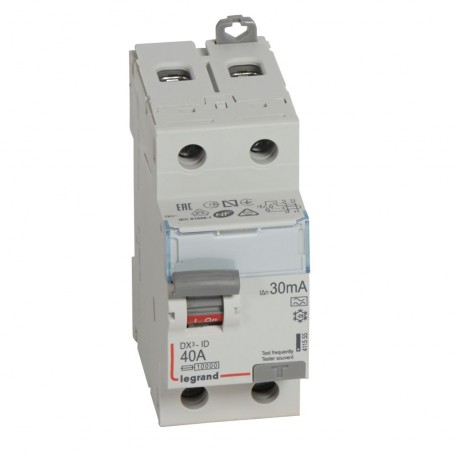

411555 LEGRAND DIFFERENTIAL DX3 2/40/30 TO
411555
411555
LEGRAND
1 Pcs.
DIFFERENTIAL DX3 2/40/30 TO
DX³-ID 2 Pole 40A A Type RCD 30mA
DX³ Differential Switch - 2P - 230V~ - 40A - Type A - 30mA - 2mod
Automation > Residual current circuit breaker (RCCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Conform to IEC 61008-1 * AC type : detect AC component faults * A type : detect AC and DC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
| Number of poles | 2 |
|---|---|
| Rated voltage | 230 V |
| Rated current | 40 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Selective protection | No |
| Short-time delayed tripping | No |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
| With interlocking device | Yes |
| Frequency | 50 Hz |
| Additional equipment possible | Yes |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 2 |
| Built-in depth | 44 mm |
| Ambient temperature during operating | -25-60 °C |
|---|---|
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 0.75-35 mm² |
| Connectable conductor cross section solid-core | 0.75-50 mm² |
| Colour | Grey |
| RAL-number (similar) | 7035 |
| Explosion-proof | No |
| Width | 35.6 mm |
| Height | 94.8 mm |
| Depth | 77.8 mm |
| degree of impact strength (IK) | IK04 |
| Storage temperature | -40-70 °C |
| Electric supplying direction | By the top or bottom |
| Terminal marking indication | No |
| Stress test conformity (1000V) | Yes |
| Halogen free | Yes |
| Connection type | Screwed terminal , Busbar and cable |
| Label space/information surface | Yes |
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Frequency (EF005455) | 50 Hz |
| Selective protection (EF002561) | No |
| Short-circuit breaking capacity (Icw) (EF002562) | 10 kA |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | A |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Mounting method (EF000003) | DIN rail |
| Surge current capacity (EF002564) | 0.25 kA |
| Number of poles (EF001391) | 2 |
| Short-time delayed tripping (EF003604) | No |
| Rated fault current (EF002358) | 0.03 A |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Built-in depth (EF000218) | 44 mm |
| RAL-number (similar) (EF003882) | 7035 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 2 |
| Rated insulation voltage Ui (EF001366) | 250 V |
| With interlocking device (EF007385) | Yes |
| Connectable conductor cross section multi-wired (EF007343) | 0.75 mm² |
| Rated current (EF000227) | 40 A |
| Rated voltage (EF000228) | 230 V |
