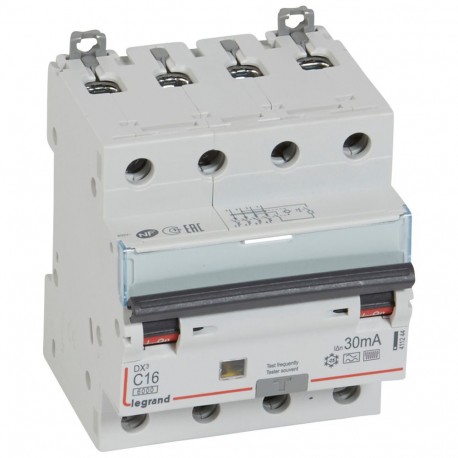

LEGRAND 411244 411244 LEGRAND MAG DIF DX3 4P 30MA C16 TYPE F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411244 LEGRAND MAG DIF DX3 4P 30MA C16 TYPE F

411244

411244

LEGRAND

1 Pcs.

MAG DIF DX3 4P 30MA C16 TYPE F RCBO - DX³ 6000 - 10 kA - 4P 400 V~ - 16 A - 30 mA - Hpi type Differential circuit breaker DX³ 6000/10kA curve C - 4P - 16A-30mA - Type Hpi

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting complex electrical circuits from overloads and earth faults, this Legrand magnetic differential DX3 unit (part 411244) offers robust multi-pole safety management. Devices of this category are regularly installed within industrial control panels and main distribution hubs to ensure continuous operational safety and prevent equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): F
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 3 kA
  • Anti-nuisance tripping version (EF009497): Yes
  • Rated fault current (EF002358): 0.03 A
  • Number of protected poles (EF005548): 4
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • With interlocking device (EF007385): Yes
  • Rated current (EF000227): 16 A
  • Current limiting class (EF002568): 3

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)505.00
Product characteristics
4-pole - 400 V~
  • 4-module RCBOs are compatible with prong-type and fork type supply busbars
  • 7-module RCBOs are compatible with prong-type supply busbars only
F type (old Hpi type) 30 mA
  • C curve
  • Nominal rating In : 16 A
  • Number of modules : 4
General characteristics
RCBOs DX³ 6000 - 10 kA - residual current circuit breakers from 10 A to 63 A - AC, A and F types
  • Conform to IEC 61009-1, IEC 62423 (F type)
  • Voltage independent tripping
  • Breaking capacity:
    • 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole
  • AC type : detect AC component faults
  • A type : detect AC and DC component faults
  • F type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currents
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
