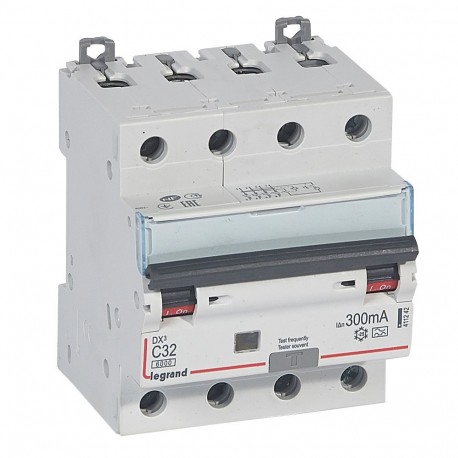

LEGRAND 411242 411242 LEGRAND MAGNET DIFFER DX3 4P 300mA C32 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411242 LEGRAND MAGNET DIFFER DX3 4P 300mA C32

411242

411242

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 4P 300mA C32 RCBO - DX³ 6000 -10 kA -4P-400 V~ -32 A -300 mA -A type Differential circuit breaker DX³ 6000/10kA curve C - 4P - 32A-300mA - Type A

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Acting as a vital safety barrier, this residual current circuit breaker with overcurrent protection isolates faulty circuits during overloads and leakage events. It is widely applied in industrial power distribution panels to protect equipment and personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): A
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 0.25 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 0.3 A
  • Number of protected poles (EF005548): 4
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • With interlocking device (EF007385): Yes
  • Rated current (EF000227): 32 A
  • Current limiting class (EF002568): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.701
  • Weight (g)477.00
Product characteristics
4-pole - 400 V~
  • 4-module RCBOs are compatible with prong-type and fork type supply busbars
  • 7-module RCBOs are compatible with prong-type supply busbars only
A Type 300 mA
  • C curve
  • Nominal rating In : 32 A
  • Number of modules : 4
General characteristics
RCBOs DX³ 6000 - 10 kA - residual current circuit breakers from 10 A to 63 A - AC, A and F types
  • Conform to IEC 61009-1, IEC 62423 (F type)
  • Voltage independent tripping
  • Breaking capacity:
    • 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole
  • AC type : detect AC component faults
  • A type : detect AC and DC component faults
  • F type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currents
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
