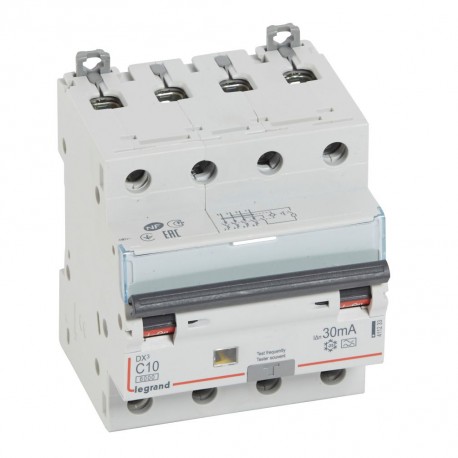

411233 LEGRAND MAGNET DIFFER DX3 4P 30mA C10
411233
411233
LEGRAND
1 Pcs.
Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand DX3 differential magnetic circuit breaker, part number 411233, provides reliable multi-pole protection against overcurrents and insulation faults in electrical distribution lines. Such devices are standard in commercial distribution boards to ensure safety compliance and system reliability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Frequency (EF005455): 50 Hz
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): A
- Voltage type (EF000187): AC
- Concurrently switching neutral conductor (EF005997): Yes
- Surge current capacity (EF002564): 0.25 kA
- Anti-nuisance tripping version (EF009497): No
- Rated fault current (EF002358): 0.03 A
- Number of protected poles (EF005548): 4
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 4
- With interlocking device (EF007385): Yes
- Rated current (EF000227): 10 A
- Current limiting class (EF002568): 3
More info
▲- Pack (number of units)1
- Volume (dm3)0.701
- Weight (g)509.00
- 4-module RCBOs are compatible with prong-type and fork type supply busbars
- 7-module RCBOs are compatible with prong-type supply busbars only
- C curve
- Nominal rating In : 10 A
- Number of modules : 4
- Conform to IEC 61009-1, IEC 62423 (F type)
- Voltage independent tripping
- Breaking capacity:
- 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, 2 and 4-pole
- AC type : detect AC component faults
- A type : detect AC and DC component faults
- F type (High immunity) : detect AC and pulsating DC residual currents. Enhanced immunity to unwanted tripping in disturbed environments. Detection of high frequency fault currents
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
