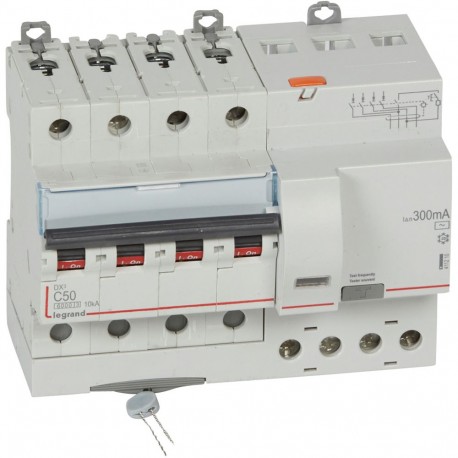

411210 LEGRAND MAGNET DIFFER DX3 4P 300mA C50
411210
411210
LEGRAND
1 Pcs.
Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand residual current circuit breaker with overcurrent protection provides multi-phase fault monitoring and overload interruption for industrial electrical installations. Such devices protect infrastructure and equipment from electrical faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Frequency (EF005455): 50 Hz
- Connectable conductor cross section solid-core (EF007337): 1 mm²
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): AC
- Voltage type (EF000187): AC
- Concurrently switching neutral conductor (EF005997): Yes
- Surge current capacity (EF002564): 0.25 kA
- Anti-nuisance tripping version (EF009497): No
- Rated fault current (EF002358): 0.3 A
- Number of protected poles (EF005548): 4
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 7
- With interlocking device (EF007385): Yes
- Connectable conductor cross section multi-wired (EF007343): 1 mm²
More info
▲| Number of poles (total) | 4 |
|---|---|
| Number of protected poles | 4 |
| Rated voltage | 400 V |
| Rated current | 50 A |
| Rated fault current | 0.3 A |
| Leakage current type | AC |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 10 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
|---|---|
| Release characteristic | C |
| Concurrently switching neutral conductor | Yes |
| With interlocking device | Yes |
| Pollution degree | 2 |
| Width in number of modular spacings | 7 |
| Built-in depth | 44 mm |
| Anti-nuisance tripping version | No |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 1-35 mm² |
| Connectable conductor cross section multi-wired | 1-25 mm² |
