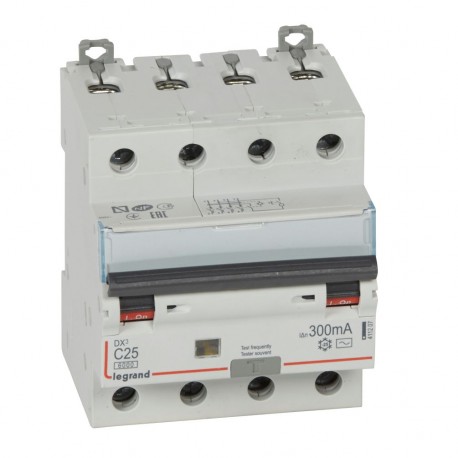

411207 LEGRAND MAGNET DIFFER DX3 4P 300mA C25
411207
411207
LEGRAND
1 Pcs.
Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 411207 magnetic differential block is designed to mount onto circuit breakers to provide residual current protection for multi-phase electrical installations. It automatically disconnects power when earth leakage currents exceed safety thresholds, preventing electrical hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Frequency: 50 Hz
- Degree of protection (IP): IP20
- Leakage current type: AC
- Voltage type: AC
- Concurrently switching neutral conductor: Yes
- Surge current capacity: 0.25 kA
- Anti-nuisance tripping version: No
- Rated fault current: 0.3 A
- Number of protected poles: 4
- Built-in depth: 44 mm
- Number of poles (total): 4
- Pollution degree: 2
- Width in number of modular spacings: 4
- With interlocking device: Yes
- Rated current: 25 A
- Current limiting class: 1
More info
▲| Number of poles (total) | 4 |
|---|---|
| Number of protected poles | 4 |
| Rated voltage | 400 V |
| Rated current | 25 A |
| Rated fault current | 0.3 A |
| Leakage current type | AC |
| Current limiting class | 1 |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
|---|---|
| Frequency | 50 Hz |
| Release characteristic | C |
| Concurrently switching neutral conductor | Yes |
| With interlocking device | Yes |
| Pollution degree | 2 |
| Width in number of modular spacings | 4 |
| Built-in depth | 44 mm |
| Anti-nuisance tripping version | No |
| Degree of protection (IP) | IP20 |
