View larger
Images are for illustrative purposes only. Please refer to data sheet for details

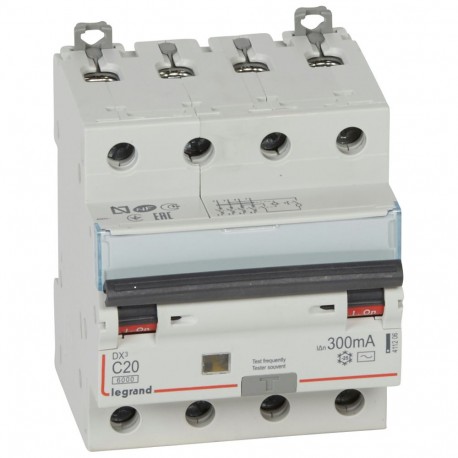

411206 LEGRAND MAGNET DIFFER DX3 4P 300mA C20
411206
411206
LEGRAND
1 Pcs.
MAGNET DIFFER DX3 4P 300mA C20
DX³ 6000A 4 Pole 20A AC Type RCBO C Curve 300mA
Differential circuit breaker DX³ 6000/10kA curve C - 4P - 20A-300mA - Type AC
Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, double and four pole * AC type : detect AC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
| Number of poles (total) | 4 |
|---|---|
| Number of protected poles | 4 |
| Rated voltage | 400 V |
| Rated current | 20 A |
| Rated fault current | 0.3 A |
| Leakage current type | AC |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity according to EN 61009 | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
|---|---|
| Frequency | 50 Hz |
| Release characteristic | C |
| Concurrently switching neutral conductor | Yes |
| With interlocking device | Yes |
| Pollution degree | 2 |
| Width in number of modular spacings | 4 |
| Built-in depth | 44 mm |
| Anti-nuisance tripping version | No |
| Degree of protection (IP) | IP20 |
| Feature Name | Feature Value |
|---|---|
| Frequency (EF005455) | 50 Hz |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | AC |
| Voltage type (EF000187) | AC |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Surge current capacity (EF002564) | 0.25 kA |
| Anti-nuisance tripping version (EF009497) | No |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 10 kA |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 6 kA |
| Rated fault current (EF002358) | 0.3 A |
| Number of protected poles (EF005548) | 4 |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 4 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 4 |
| With interlocking device (EF007385) | Yes |
| Rated current (EF000227) | 20 A |
| Current limiting class (EF002568) | 3 |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 400 V |
