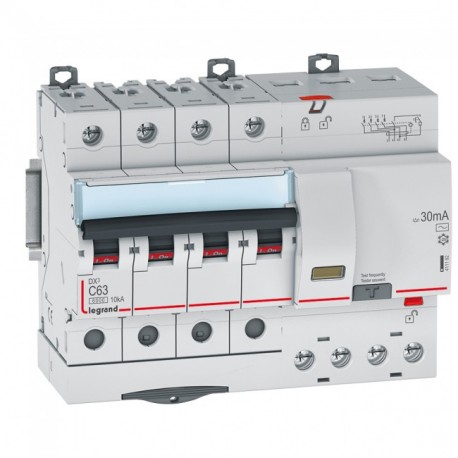

LEGRAND 411192 411192 LEGRAND MAGNET DIFFER DX3 4P 30mA C63 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411192 LEGRAND MAGNET DIFFER DX3 4P 30mA C63

411192

411192

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 4P 30mA C63 DX³ 6000A 4 Pole 63A AC Type RCBO C Curve 30mA Differential circuit breaker DX³ 6000/10kA curve C - 4P - 63A-30mA - Type AC

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 411192 magnet-differential circuit breaker protects multi-phase electrical installations against earth leakage currents and circuit overloads. Such differential devices are critical for preventing electrical shocks and maintaining system safety in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Connectable conductor cross section solid-core (EF007337): 1 mm²
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 0.25 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 0.03 A
  • Number of protected poles (EF005548): 4
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 7
  • With interlocking device (EF007385): Yes
  • Connectable conductor cross section multi-wired (EF007343): 1 mm²

More info

▲
Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, double and four pole * AC type : detect AC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated current63 A
Rated fault current0.03 A
Leakage current typeAC
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity according to IEC 60947-210 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorYes
With interlocking deviceYes
Pollution degree2
Width in number of modular spacings7
Built-in depth44 mm
Anti-nuisance tripping versionNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1-35 mm²
Connectable conductor cross section multi-wired1-25 mm²
