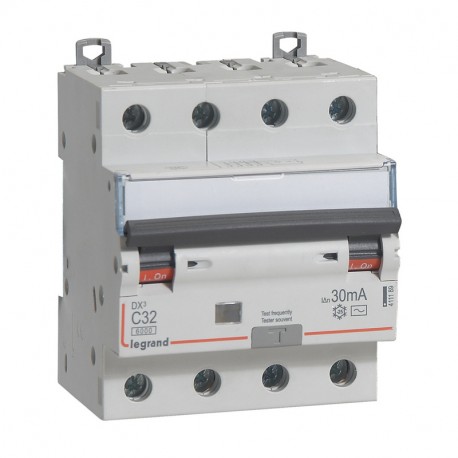

LEGRAND 411189 411189 LEGRAND MAGNET DIFFER DX3 4P 30mA C32 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411189 LEGRAND MAGNET DIFFER DX3 4P 30mA C32

411189

411189

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 4P 30mA C32 DX³ 6000A 4 Pole 32A AC Type RCBO C Curve 30mA Differential circuit breaker DX³ 6000/10kA curve C - 4P - 32A-30mA - AC Type

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 411189 magnet differential DX3 is a residual current operated circuit breaker utilized to defend personnel against electric shock and installations against insulation faults. Devices of this category are frequently integrated into multi-phase power distribution panels to isolate faulty circuits and prevent electrical fires. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 0.25 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 0.03 A
  • Number of protected poles (EF005548): 4
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • With interlocking device (EF007385): Yes
  • Rated current (EF000227): 32 A
  • Current limiting class (EF002568): 1

More info

▲
Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, double and four pole * AC type : detect AC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated current32 A
Rated fault current0.03 A
Leakage current typeAC
Current limiting class1
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorYes
With interlocking deviceYes
Pollution degree2
Width in number of modular spacings4
Built-in depth44 mm
Anti-nuisance tripping versionNo
Degree of protection (IP)IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
