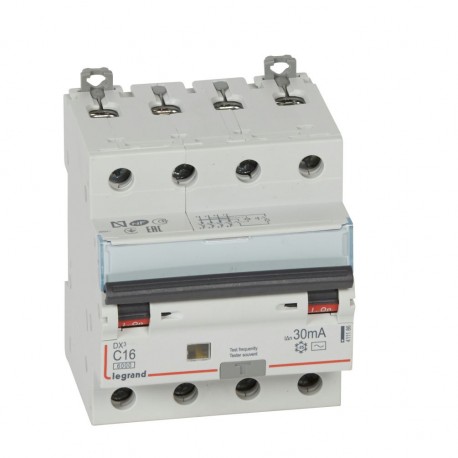

LEGRAND 411186 411186 LEGRAND MAGNET DIFFER DX3 4P 30mA C16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

411186 LEGRAND MAGNET DIFFER DX3 4P 30mA C16

411186

411186

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 4P 30mA C16 DX³ 6000A 4 Pole 16A AC Type RCBO C Curve 30mA Differential circuit breaker DX³ 6000/10kA curve C - 4P - 16A-30mA - AC Type

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 411186 magnetic differential switch integrates residual current detection and overcurrent breaking to protect electrical circuits from ground faults and overloads. Technicians deploy these modular devices in distribution enclosures to ensure comprehensive circuit safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 0.25 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 0.03 A
  • Number of protected poles (EF005548): 4
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • With interlocking device (EF007385): Yes
  • Rated current (EF000227): 16 A
  • Current limiting class (EF002568): 3

More info

▲
Breaking capacity: 6000 - IEC 61009-1 - 10 kA / IEC 60947-2 for single pole + neutral, double and four pole * AC type : detect AC component faults Enhanced immunity to unwanted tripping in disturbed environments Can be equipped with DX3 auxiliaries and accessories
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated current16 A
Rated fault current0.03 A
Leakage current typeAC
Current limiting class3
Rated short-circuit breaking capacity according to EN 610096 kA
Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Concurrently switching neutral conductorYes
With interlocking deviceYes
Pollution degree2
Width in number of modular spacings4
Built-in depth44 mm
Anti-nuisance tripping versionNo
Degree of protection (IP)IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
