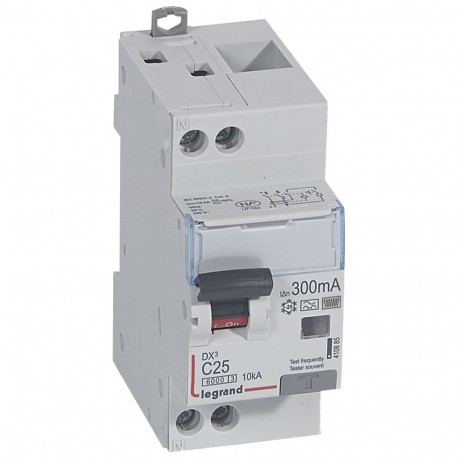

LEGRAND 410885 410885 LEGRAND DX3 1P+N C25 6/10K HPI 300MA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

410885 LEGRAND DX3 1P+N C25 6/10K HPI 300MA

410885

410885

LEGRAND

1 Pcs.

DX3 1P+N C25 6/10K HPI 300MA Automatic differential monoblock DX3 1600 - 10kA curve C - F Type 25A DX³ 1600/10kA curve C - 25A - Type F differential differential circuit breaker

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand DX3 component carrying part number 410885, functioning as a modular protective device that isolates faulty branch circuits to prevent electrical shock and thermal damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): F
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 3 kA
  • Anti-nuisance tripping version (EF009497): Yes
  • Rated fault current (EF002358): 0.3 A
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • With interlocking device (EF007385): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.75 mm²

More info

▲

Product features

Automatic switch differential single-piece DX3 6000 - 10kA, Curve-C - F-Type - In 25A, Sensitivity: 300 mA, 2 modules. Uni + Neutral 230 V ~

General characteristics

nterruptores automatic differential monoblocks DX3 6000A/10 kA - curve C - protection of the outputs - Conform to the norm UNE-en 61009-1 - Power of court: - 6000 - UNE-en 60898-1 - 10 kA - UNE-en 60947-2 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type F: detect defects in components, alternating and continuous, with immunity reinforced the false alarms. - To comb, HX3 traditional tetrapolar ref. 4 049 44/45 or traditional network cabling - Connection: top entry and bottom exit for terminals with screws
