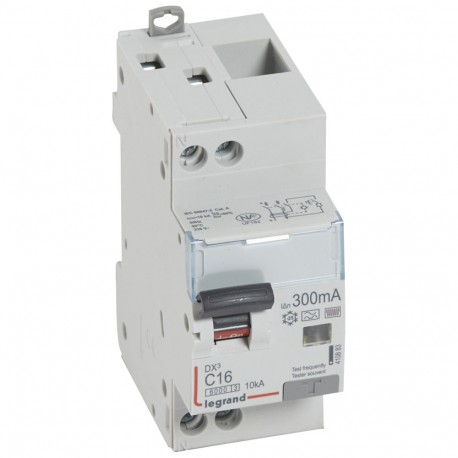

410883 LEGRAND DX3 1P+N C16 6/10K HPI 300MA
410883
410883
LEGRAND
1 Pcs.
Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 410883 is a residual current circuit breaker with overcurrent protection used to safeguard personnel and wiring from electrical faults in modern distribution systems. Panel builders install these units to provide combined short-circuit, overload, and residual current protection in a compact modular footprint. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Frequency (EF005455): 50 Hz
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): F
- Voltage type (EF000187): AC
- Concurrently switching neutral conductor (EF005997): Yes
- Surge current capacity (EF002564): 3 kA
- Anti-nuisance tripping version (EF009497): Yes
- Rated fault current (EF002358): 0.3 A
- Number of protected poles (EF005548): 1
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 2
- With interlocking device (EF007385): Yes
- Connectable conductor cross section multi-wired (EF007343): 0.75 mm²
