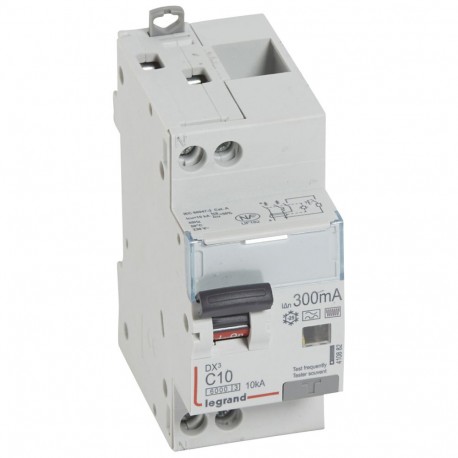

LEGRAND 410882 410882 LEGRAND DX3 1P+N C10 6/10K HPI 300MA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

410882 LEGRAND DX3 1P+N C10 6/10K HPI 300MA

410882

410882

LEGRAND

1 Pcs.

DX3 1P+N C10 6/10K HPI 300MA Automatic differential monoblock DX3 1600 - 10kA curve C - Type F 10A DX³ 1600/10kA curve C - 10A differential differential circuit breaker - Type F

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand DX3 RCBO 410882 integrates overcurrent protection with high-immunity residual current sensing to prevent unwanted tripping while defending circuits against electrical faults. Such specialized components are ideal for environments with sensitive electronic loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): F
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 3 kA
  • Anti-nuisance tripping version (EF009497): Yes
  • Rated fault current (EF002358): 0.3 A
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • With interlocking device (EF007385): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.75 mm²

More info

▲

Product features

Automatic switch differential single-piece DX3 6000 - 10kA, Curve-C - F-Type - In 10A, Sensitivity: 300 mA, 2 modules. Uni + Neutral 230 V ~

General characteristics

nterruptores automatic differential monoblocks DX3 6000A/10 kA - curve C - protection of the outputs - Conform to the norm UNE-en 61009-1 - Power of court: - 6000 - UNE-en 60898-1 - 10 kA - UNE-en 60947-2 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type F: detect defects in components, alternating and continuous, with immunity reinforced the false alarms. - To comb, HX3 traditional tetrapolar ref. 4 049 44/45 or traditional network cabling - Connection: top entry and bottom exit for terminals with screws

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
