LEGRAND 410859 410859 LEGRAND MAGNET DIFFER DX3 P+N 30mA C40 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

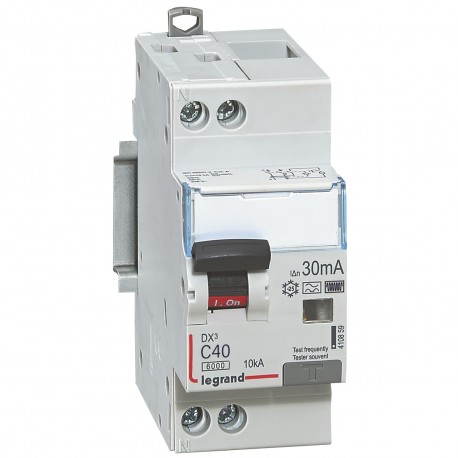

410859 LEGRAND MAGNET DIFFER DX3 P+N 30mA C40

410859

410859

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 P+N 30mA C40 Magnetothermal differential DX3 6000/10kA - 1P+N - 230 V~ -40 TO-curve C - 30mA-type Hpi Differential circuit breaker DX³ 6000/10kA curve C - 1P+N - 40A - 30mA - Type Hpi

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to monitor electrical circuits for fault currents, this Legrand 410859 differential protection device helps prevent catastrophic equipment damage and electric shock. Technicians integrate such components into modular distribution boards to ensure reliable automated disconnection during insulation failures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): F
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 3 kA
  • Anti-nuisance tripping version (EF009497): Yes
  • Rated fault current (EF002358): 0.03 A
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • With interlocking device (EF007385): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.75 mm²

More info

▲

Product features

Single-pole + neutral 230 V~ Type Hpi curve C - Sensitivity: 30mA - rated current: 40 - Number of modules: 2 - Appliances with brand N except 40A

General characteristics

Automatic switches differential monoblocks DX3 6000A/10 kA - curve C - protection of the outputs - Conform to the norm UNE-en 61009-1 - Power of court: - 6000 - UNE-en 60898-1 - 10 kA - UNE-en 60947-2 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous, with immunity reinforced the false alarms. - To comb, HX3 traditional tetrapolar ref. 4 049 44/45 or traditional network cabling - Connection: top entry and bottom exit for terminals with screws
