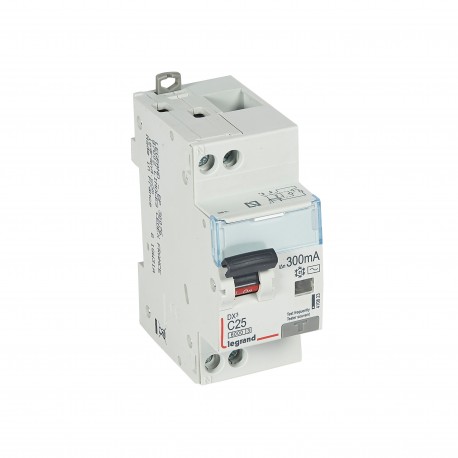

410823 LEGRAND MAGNET DIFFER DX3 P+N 300mA C25
410823
410823
LEGRAND
1 Pcs.
Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for electrical distribution safety, this Legrand RCD/MCB combination switch performs the critical task of interrupting power during overload conditions, short circuits, and earth leakage events. Such protective devices are routinely installed within consumer units and control panels to safeguard both equipment and operators from electrical hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Frequency (EF005455): 50 Hz
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): AC
- Voltage type (EF000187): AC
- Concurrently switching neutral conductor (EF005997): Yes
- Surge current capacity (EF002564): 0.25 kA
- Anti-nuisance tripping version (EF009497): No
- Rated fault current (EF002358): 0.3 A
- Number of protected poles (EF005548): 1
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 2
- With interlocking device (EF007385): Yes
- Connectable conductor cross section multi-wired (EF007343): 0.75 mm²
