> LEGRAND > TERTIARY CIRCUIT BREAKERS > 410791

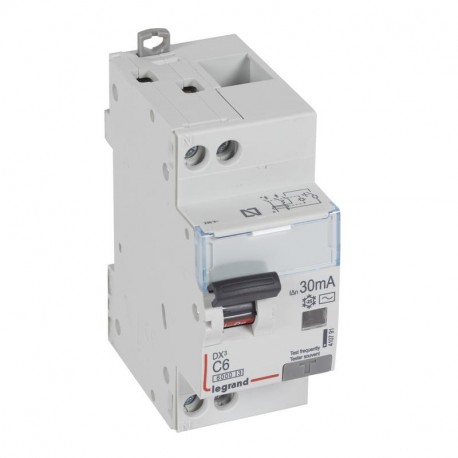

LEGRAND 410791 410791 LEGRAND MAGNET DIFFER DX3 P+N 30mA C6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

410791 LEGRAND MAGNET DIFFER DX3 P+N 30mA C6

410791

410791

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 P+N 30mA C6 Magnetothermal differential DX3 6000/10kA - 1P+N - 230 V~ -6 TO-curve C - 30mA-AC Differential circuit breaker DX³ 6000/10kA - 1P+N - 6A - C curve - 30mA - AC type

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Single-pole + neutral 230 V~ AC curve C - Sensitivity: 30mA - rated current: 6 - Number of modules: 2 - Appliances with brand N except 40A

General characteristics

Automatic switches differential monoblocks DX3 6000A/10 kA - curve C - protection of the outputs - Conform to the norm UNE-en 61009-1 - Power of court: - 6000 - UNE-en 60898-1 - 10 kA - UNE-en 60947-2 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous, with immunity reinforced the false alarms. - To comb, HX3 traditional tetrapolar ref. 4 049 44/45 or traditional network cabling - Connection: top entry and bottom exit for terminals with screws

ETIM for 410791 Circuit breakers and fuses (EC000905)
Feature Name Feature Value
Frequency (EF005455) 50 Hz
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Degree of protection (IP) (EF005474) IP20
Leakage current type (EF002560) AC
Voltage type (EF000187) AC
Concurrently switching neutral conductor (EF005997) Yes
Surge current capacity (EF002564) 0.25 kA
Anti-nuisance tripping version (EF009497) No
Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) 6 kA
Rated short-circuit breaking capacity according to EN 61009 (EF012628) 6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) 6 kA
Rated fault current (EF002358) 0.03 A
Number of protected poles (EF005548) 1
Built-in depth (EF000218) 44 mm
Number of poles (total) (EF008618) 2
Pollution degree (EF002570) 2
Width in number of modular spacings (EF002950) 2
With interlocking device (EF007385) Yes
Connectable conductor cross section multi-wired (EF007343) 0.75 mm²
Rated current (EF000227) 6 A
Current limiting class (EF002568) 3
Release characteristic (EF000889) C
Rated voltage (EF000228) 230 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
