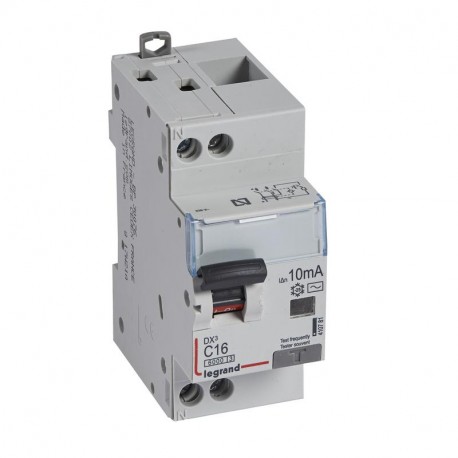

LEGRAND 410781 410781 LEGRAND MAGNET DIFFER DX3 P+N 10th C16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

410781 LEGRAND MAGNET DIFFER DX3 P+N 10th C16

410781

410781

LEGRAND

1 Pcs.

MAGNET DIFFER DX3 P+N 10th C16 Magnetothermal differential DX3 6000/10kA - 1P+N - 230 V~ -16A-curve C - 10mA-type AC Differential circuit breaker DX³ 6000/10kA - 1P+N - 16A - C curve - 10mA - AC type

Automation > Earth leakage circuit breaker
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 410781 magnet-differential circuit breaker combines residual current detection and miniature circuit breaking for localized electrical protection. These units are utilized in distribution enclosures to shield circuits from overloads while instantly cutting power upon detecting fault currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50 Hz
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 0.25 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 0.01 A
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • With interlocking device (EF007385): Yes
  • Connectable conductor cross section multi-wired (EF007343): 0.75 mm²

More info

▲

Product features

Single-pole + neutral 230 V~ AC curve C - Sensitivity: 30 0mA - rated current: 63 - Number of modules: 2 - Appliances with brand N except 40A

General characteristics

Automatic switches differential monoblocks DX3 6000A/10 kA - curve C - protection of the outputs - Conform to the norm UNE-en 61009-1 - Power of court: - 6000 - UNE-en 60898-1 - 10 kA - UNE-en 60947-2 - Type AC: detect the defects of component ac - Type To: detect defects in components alternating current and direct current (specialized circuits: cookers, cooking plates, washing machines, etc) - Type Hpi: detect defects in components, alternating and continuous, with immunity reinforced the false alarms. - To comb, HX3 traditional tetrapolar ref. 4 049 44/45 or traditional network cabling - Connection: top entry and bottom exit for terminals with screws
