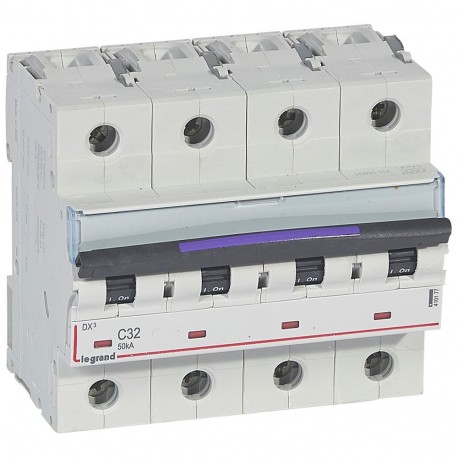

LEGRAND 410177 410177 LEGRAND MAGNET DX3 50kA C 4P 32A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

410177 LEGRAND MAGNET DX3 50kA C 4P 32A

410177

410177

LEGRAND

1 Pcs.

MAGNET DX3 50kA C 4P 32A MCB - DX³ - 50 kA - 4P 400 V~ - 32 A - C curve DX³ 50kA Circuit Breaker - 4P - 400V~ - 32A - C curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Housed for modular electrical installations, the 410177 LEGRAND MAGNET DX3 50kA C 4P 32A supplied by Legrand serves as a protective circuit breaker meant to safeguard wiring systems against overloads and short-circuit faults. This type of switching device is widely integrated into electrical distribution panels to automatically disconnect faulty circuits and ensure operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 6 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 47 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 6
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.04
  • Weight (g)879.00
Product characteristics
4-pole - 400 V~
  • C curve
  • Nominal rating In : 32 A
  • Number of modules : 6
General characteristics
MCBs DX³ - 50 kA - thermal magnetic MCBs from 10 A to 63 A - C and D curves
  • Breaking capacity:
  • 50 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ auxiliaries and accessories
