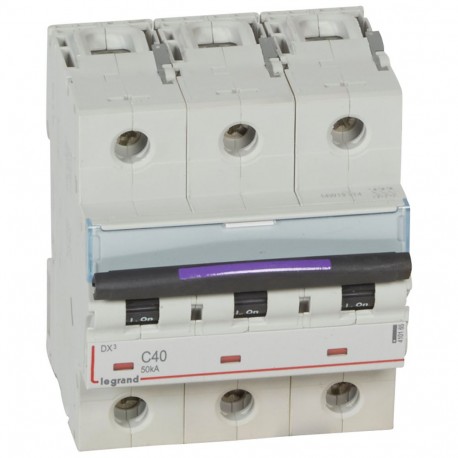

410165 LEGRAND MAGNET DX3 50kA C 3P 40A
410165
410165
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand magnetic circuit breaker provides rapid fault interruption in high-capacity electrical systems, preventing equipment damage caused by excessive current surges. These industrial devices are commonly installed in primary distribution panels and motor control centers.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 3
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 3
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 4.5
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.04
- Weight (g)660.00
- C curve
- Nominal rating In : 40 A
- Number of modules : 4.5
- Breaking capacity:
- 50 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ auxiliaries and accessories
