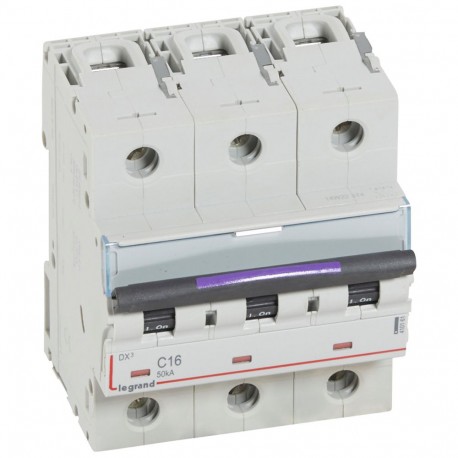

410161 LEGRAND MAGNET DX3 50kA C 3P 16A
410161
410161
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 410161 is a three-pole magnetic circuit breaker designed to safeguard industrial electrical installations against high fault currents and short-circuit events. Circuit protection devices like this are standard in distribution boards to ensure rapid isolation of dangerous electrical anomalies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 3
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 3
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 4.5
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.04
- Weight (g)656.00
- C curve
- Nominal rating In : 16 A
- Number of modules : 4.5
- Breaking capacity:
- 50 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ auxiliaries and accessories
