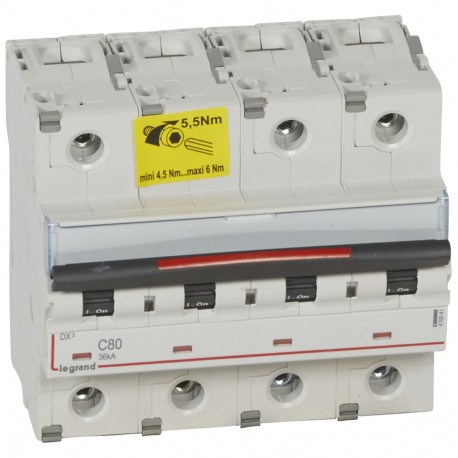

410041 LEGRAND MAGNET DX3 36kA C 4P 80A
410041
410041
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand magnet DX3 circuit breaker, designated by part number 410041, is a high-capacity four-pole protective device designed for robust electrical installations and power distribution networks. Industrial facilities utilize circuit breakers to safeguard heavy-duty machinery and electrical grids from dangerous fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 6 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 4
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 6
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 6 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.04
- Weight (g)925.00
- C curve
- Nominal rating In : 80 A
- Number of modules : 6
- Breaking capacity:
- 36 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ auxiliaries and accessories
