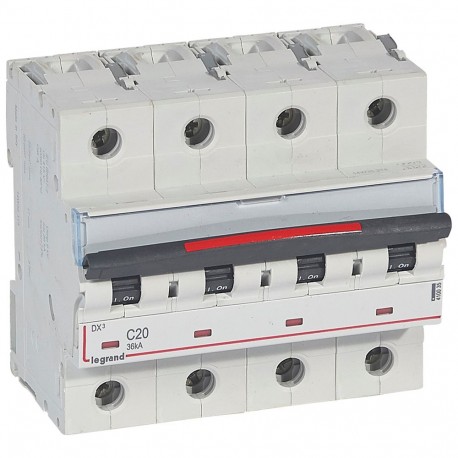

410035 LEGRAND MAGNET DX3 36kA C 4P 20A
410035
410035
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 410035 LEGRAND MAGNET DX3 36kA C 4P 20A is a magnetic circuit breaker designed to offer comprehensive protection against short circuits and overloads in heavy-duty power networks. Multi-pole magnetic circuit breakers are essential for safeguarding complex electrical architectures and machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 4
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 6
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.04
- Weight (g)879.00
- C curve
- Nominal rating In : 20 A
- Number of modules : 6
- Breaking capacity:
- 36 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ auxiliaries and accessories
