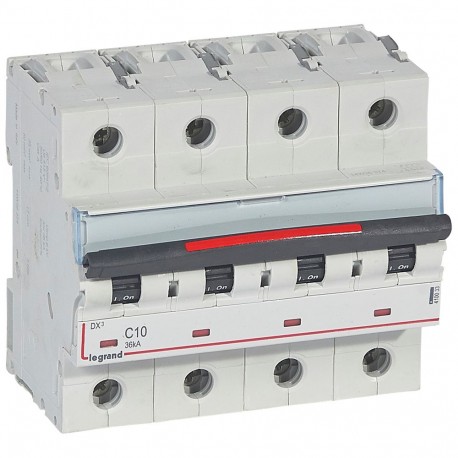

LEGRAND 410033 410033 LEGRAND MAGNET DX3 36kA C 4P 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

410033 LEGRAND MAGNET DX3 36kA C 4P 10A

410033

410033

LEGRAND

1 Pcs.

MAGNET DX3 36kA C 4P 10A MCB - DX³ - 36 kA - 4P 400 V~ - 10 A - C curve DX³ 36kA Circuit Breaker - 4P - 400V~ - 10A - C curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 410033 LEGRAND DX3 36kA C 4P 10A from Legrand is a heavy-duty miniature circuit breaker designed to safeguard electrical distribution networks from overloads and short circuits. Circuit breakers of this caliber are essential in commercial and industrial installations for ensuring operational safety and protecting downstream assets.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 6 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 47 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 6
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.04
  • Weight (g)854.00
Product characteristics
4-pole - 400 V~
  • C curve
  • Nominal rating In : 10 A
  • Number of modules : 6
General characteristics
MCBs DX³ - 36 kA - thermal magnetic MCBs from 10 A to 80 A - C curve
  • Breaking capacity:
  • 36 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ auxiliaries and accessories
