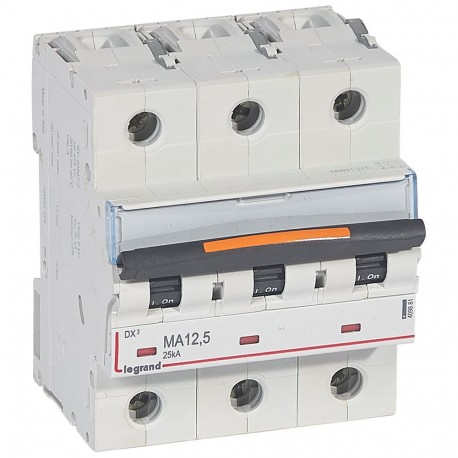

LEGRAND 409881 409881 LEGRAND AUTOMATIC DX3 3P MA12.5 25KA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

409881 LEGRAND AUTOMATIC DX3 3P MA12.5 25KA

409881

409881

LEGRAND

1 Pcs.

AUTOMATIC DX3 3P MA12.5 25KA Automatic DX3 MA 25kA - 3P - 400V~ - 12.5 TO - just magnetic Automatic DX³ MA 25kA - 3P - 400V~ - 12.5A - magnetic only

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Provide robust automatic protection for commercial and industrial electrical distribution grids using the 409881 LEGRAND AUTOMATIC DX3 3P MA12.5 25KA. Molded case and automatic circuit breakers interrupt high-level fault currents to maintain facility safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 6 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 47 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 4.5
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲

Product features

Three-pole 400 V~ - Only magnet - rated current: 12.5 - Number of modules: 4,5

General characteristics

MCB DX3 MA - 25 kA - breakers only magnetic protection of the outputs - breaking capacity: 25 kA - UNE-en 60947-2 - 400 V~ - Support the auxiliary and all of the controllers-motorized - Connection: top entry and bottom exit for terminals with screws - Are associated to the blocks of differential adaptive
