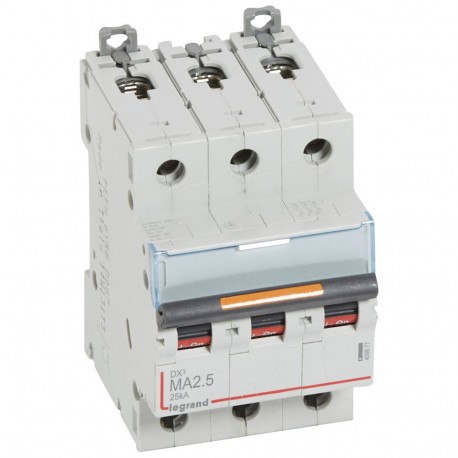

409877 LEGRAND AUTOMATIC DX3 3P MA2.5 25KA
409877
409877
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 409877 LEGRAND AUTOMATIC DX3 3P MA2.5 25KA is a three-pole automatic circuit breaker designed to interrupt high short-circuit currents and protect motor control circuits in industrial plants. Automatic protection units are essential for preventing equipment failure and ensuring electrical safety across demanding manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 3
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 3
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 3
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
