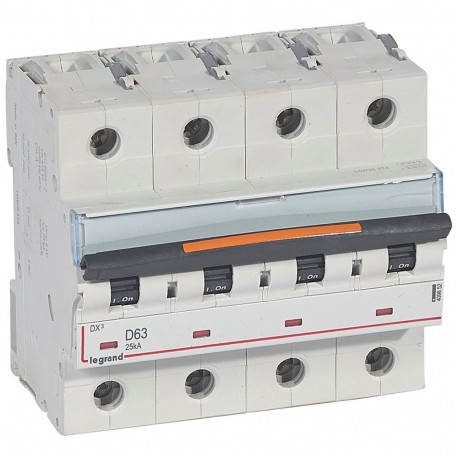

409852 LEGRAND MAGNET DX3 25kA D 4P 63A
409852
409852
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy-duty electrical protection, the Legrand 409852 LEGRAND MAGNET DX3 25kA D 4P 63A safeguards large distribution systems from high fault currents. Multi-pole circuit breakers are critical elements in commercial buildings and industrial plants for maintaining electrical safety and preventing equipment damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 4
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 6
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.04
- Weight (g)889.00
- D curve
- Nominal rating In : 63 A
- Number of modules : 6
- Breaking capacity:
- 25 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
