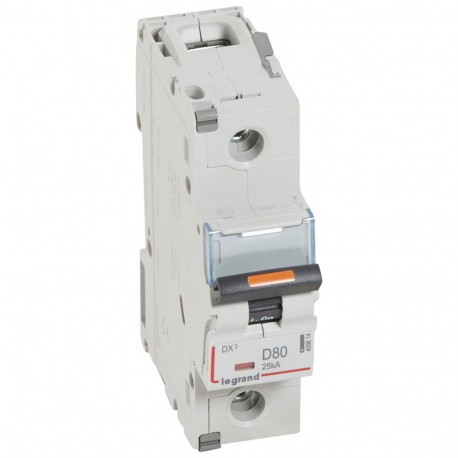

409814 LEGRAND MAGNET DX3 25kA D 1P 80A
409814
409814
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part number 409814 is a 409814 LEGRAND MAGNET DX3 25kA D 1P 80A applied in industrial and commercial switchgear to interrupt fault currents and protect sensitive electrical assets. This single-pole circuit breaker automatically opens the circuit when current exceeds safe operating thresholds. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof: No
- Connectable conductor cross section solid-core: 6 mm²
- Ambient temperature during operating: -25 °C
- Degree of protection (IP): IP20
- Concurrently switching neutral conductor: No
- Voltage type: AC
- Additional equipment possible: Yes
- Rated impulse withstand voltage Uimp: 6 kV
- Number of protected poles: 1
- Frequency: 50 Hz
- Built-in depth: 47 mm
- Number of poles (total): 1
- Pollution degree: 3
- Width in number of modular spacings: 1.5
- Rated insulation voltage Ui: 500 V
- Connectable conductor cross section multi-wired: 6 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)0.332
- Weight (g)251.00
- D curve
- Nominal rating In : 80 A
- Number of modules : 1.5
- Breaking capacity:
- 25 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
