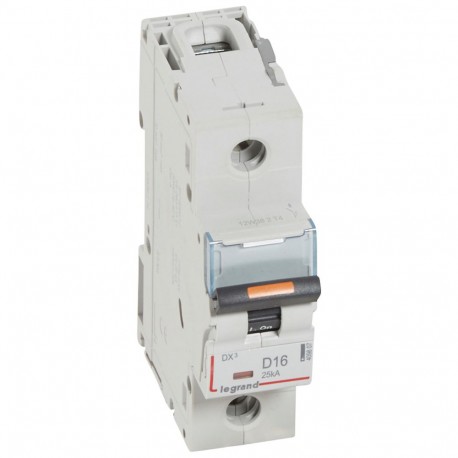

409807 LEGRAND MAGNET DX3 25kA D 1P 16A
409807
409807
LEGRAND
1 Pcs.
MAGNET DX3 25kA D 1P 16A
MCB - DX³ - 25 kA - 1P - 230/400 V~ - 16 A - D curve
DX³ Circuit Breaker 25kA - 1P - 230/400V~ - 16A - D curve
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A LEGRAND MAGNET DX3 25kA D 1P 16A is an essential circuit protection component used to guard electrical circuits against damages caused by overloads and short circuits in commercial installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 1
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 1
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 1.5
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)0.332
- Weight (g)236.00
Product characteristics
Single pole 230/400 V~- D curve
- Nominal rating In : 16 A
- Number of modules : 1/1.5
General characteristics
MCBs DX³ - 25 kA - thermal magnetic MCBs from 2 A to 125 A - C and D curves- Breaking capacity:
- 25 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
