View larger
Images are for illustrative purposes only. Please refer to data sheet for details

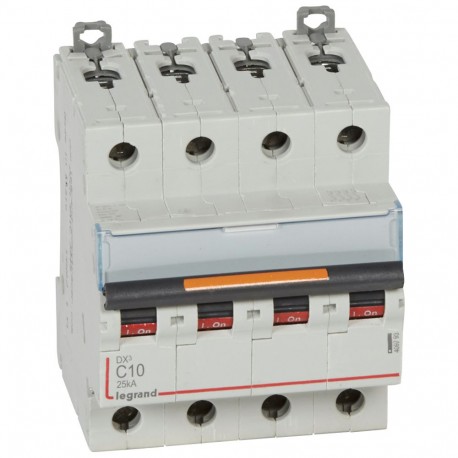

409793 LEGRAND MAGNET DX3 25kA C 4P 10A
409793
409793
LEGRAND
1 Pcs.
MAGNET DX3 25kA C 4P 10A
MCB - DX³ - 25 kA - 4P 400 V~ - 10 A - C curve
DX³ Circuit Breaker 25kA - 4P - 400V~ - 10A - C curve
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.716
- Weight (g)587.00
Product characteristics
4-pole - 400 V~- C curve
- Nominal rating In : 10 A
- Number of modules : 4
General characteristics
MCBs DX³ - 25 kA - thermal magnetic MCBs from 2 A to 125 A - C and D curves- Breaking capacity:
- 25 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 1.5 mm² |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 25 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 50 kA |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 4 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 4 |
| Pollution degree (EF002570) | 3 |
| Width in number of modular spacings (EF002950) | 4 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Rated current (EF000227) | 10 A |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 400 V |
