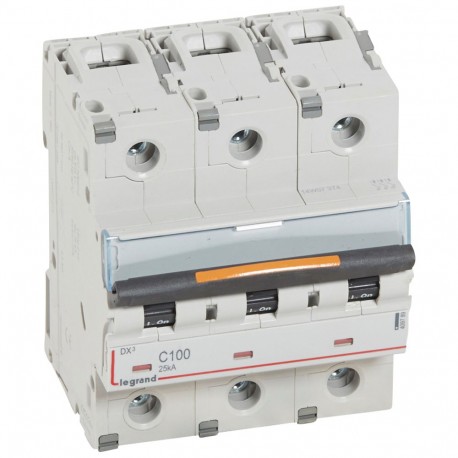

409789 LEGRAND MAGNET DX3 25kA C 3P 100A
409789
409789
LEGRAND
1 Pcs.
MAGNET DX3 25kA C 3P 100A
MCB - DX³ - 25 kA - 3P 400 V~ - 100 A - C curve
DX³ Circuit Breaker 25kA - 3P - 400V~ - 100A - C curve
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
409789 LEGRAND MAGNET DX3 25kA C 3P 100A is a protective circuit breaker designed to interrupt electrical current automatically during overload or short-circuit events, preventing damage to downstream distribution equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 6 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 6 kV
- Number of protected poles (EF005548): 3
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 3
- Pollution degree (EF002570): 3
- Width in number of modular spacings (EF002950): 4.5
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 6 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)1.04
- Weight (g)692.00
Product characteristics
3-pole - 400 V~- C curve
- Nominal rating In : 100 A
- Number of modules : 4.5
General characteristics
MCBs DX³ - 25 kA - thermal magnetic MCBs from 2 A to 125 A - C and D curves- Breaking capacity:
- 25 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
