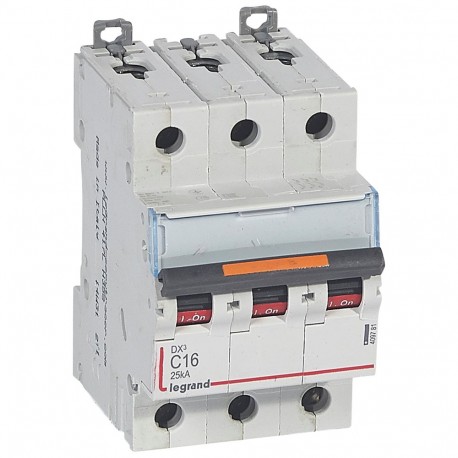

LEGRAND 409781 409781 LEGRAND MAGNET DX3 25kA C 3P 16A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

409781 LEGRAND MAGNET DX3 25kA C 3P 16A

409781

409781

LEGRAND

1 Pcs.

MAGNET DX3 25kA C 3P 16A MCB - DX³ - 25 kA - 3P 400 V~ - 16 A - C curve DX³ Circuit Breaker 25kA - 3P - 400V~ - 16A - C curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand circuit breaker (409781) functions as an automatic protection device that isolates electrical circuits during overloads and short circuits. Industrial installations utilize these circuit breakers within main electrical panels to maintain operational safety and prevent equipment failure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 3
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.716
  • Weight (g)450.00
Product characteristics
3-pole - 400 V~
  • C curve
  • Nominal rating In : 16 A
  • Number of modules : 3/4.5
General characteristics
MCBs DX³ - 25 kA - thermal magnetic MCBs from 2 A to 125 A - C and D curves
  • Breaking capacity:
  • 25 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls
