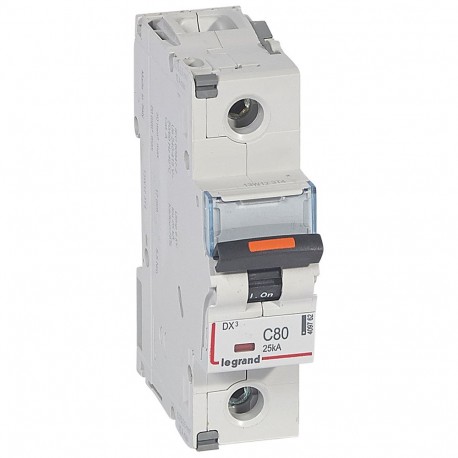

LEGRAND 409762 409762 LEGRAND MAGNET DX3 25kA C 1P 80A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

409762 LEGRAND MAGNET DX3 25kA C 1P 80A

409762

409762

LEGRAND

1 Pcs.

MAGNET DX3 25kA C 1P 80A MCB - DX³ - 25 kA - 1P - 230/400 V~ - 80 A - C curve DX³ 25kA Circuit Breaker - 1P - 230/400V~ - 80A - C curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial power systems depend on robust circuit protection components like the Legrand 409762 MAGNET DX3 to interrupt excessive fault currents. Installing this hardware helps prevent electrical fires and shields machinery from thermal and magnetic stress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 6 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 6 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 47 mm
  • Number of poles (total) (EF008618): 1
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 1.5
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 6 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.332
  • Weight (g)251.00
Product characteristics
Single pole 230/400 V~
  • C curve
  • Nominal rating In : 80 A
  • Number of modules : 1.5
General characteristics
MCBs DX³ - 25 kA - thermal magnetic MCBs from 2 A to 125 A - C and D curves
  • Breaking capacity:
  • 25 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
