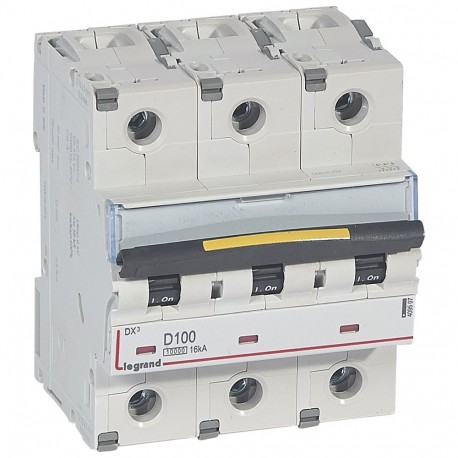

LEGRAND 409507 409507 LEGRAND MAGNET DX3 10/16kA D 3P 100A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

409507 LEGRAND MAGNET DX3 10/16kA D 3P 100A

409507

409507

LEGRAND

1 Pcs.

MAGNET DX3 10/16kA D 3P 100A DX³ 10000A 3 Pole 100A MCB D Curve 16kA DX³ 10000/16kA Circuit Breaker - 3P - 400V~ - 100A - D curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 409507 is a high-capacity magnetic circuit breaker designed to interrupt heavy fault currents and protect demanding electrical installations against severe overloads. Such components form a critical layer of safety in industrial power distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 6 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 47 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 4.5
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 6 mm²

More info

▲
Conform to IEC 60898-1 Breaking capacity 10000 - IEC 60898-1 - 400 VA 16 kA - IEC 60947-2 - 400 VA Can be equipped with DX3 auxiliaries and accessories
Built-in depth47 mm
Release characteristicD
Number of poles (total)3
Number of protected poles3
Rated current100 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16 kA
Frequency50-60 Hz
Flush-mounted installationYes
Concurrently switching neutral conductorNo
Pollution degree3
Additional equipment possibleYes
Width in number of modular spacings4.5
Degree of protection (IP)IP20
Ambient temperature during operating-25-70 °C
Connectable conductor cross section multi-wired6-50 mm²
Connectable conductor cross section solid-core6-70 mm²
Explosion-proofNo
Width53.1 mm
Height94.8 mm
Depth77.8 mm
degree of impact strength (IK)IK02
Storage temperature-40-70 °C
Electric supplying directionBy the top or bottom
ColourGrey
RAL-number7035
Halogen freeYes
Connection typeScrewed terminal
Label space/information surfaceYes
Mounting methodDIN rail
