View larger
Images are for illustrative purposes only. Please refer to data sheet for details

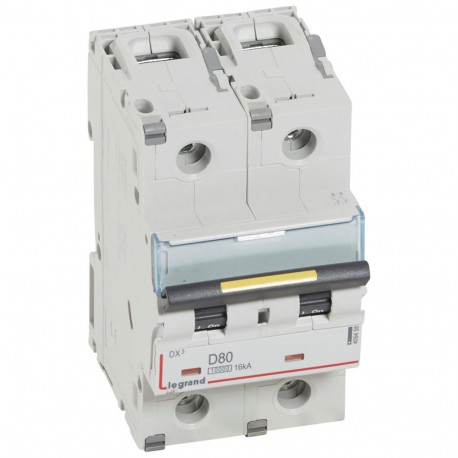

409458 LEGRAND MAGNET DX3 10/16KA D 2P 80A
409458
409458
LEGRAND
1 Pcs.
MAGNET DX3 10/16KA D 2P 80A
DX³ 10000A 2 Pole 80A MCB D Curve 16kA
DX³ 10000/16kA Circuit Breaker - 2P - 230/400V~ - 80A - D curve
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Conform to IEC 60898-1 Breaking capacity 10000 - IEC 60898-1 - 400 VA 16 kA - IEC 60947-2 - 400 VA Can be equipped with DX3 auxiliaries and accessories
| Built-in depth | 47 mm |
|---|---|
| Release characteristic | D |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Rated current | 80 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 32 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 16 kA |
| Frequency | 50-60 Hz |
| Flush-mounted installation | Yes |
| Concurrently switching neutral conductor | No |
| Pollution degree | 2 |
| Additional equipment possible | Yes |
| Width in number of modular spacings | 3 |
| Degree of protection (IP) | IP20 |
|---|---|
| Ambient temperature during operating | -25-70 °C |
| Connectable conductor cross section multi-wired | 6-50 mm² |
| Connectable conductor cross section solid-core | 6-70 mm² |
| Explosion-proof | No |
| Width | 35.4 mm |
| Height | 94.8 mm |
| Depth | 77.8 mm |
| degree of impact strength (IK) | IK02 |
| Storage temperature | -40-70 °C |
| Electric supplying direction | By the top or bottom |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Connection type | Screwed terminal |
| Label space/information surface | Yes |
| Mounting method | DIN rail |
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 6 mm² |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | No |
| Voltage type (EF000187) | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) | 10 kA |
| Additional equipment possible (EF008148) | Yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 16 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 32 kA |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 2 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 47 mm |
| Number of poles (total) (EF008618) | 2 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 3 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Connectable conductor cross section multi-wired (EF007343) | 6 mm² |
| Rated current (EF000227) | 80 A |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | D |
| Rated voltage (EF000228) | 400 V |
