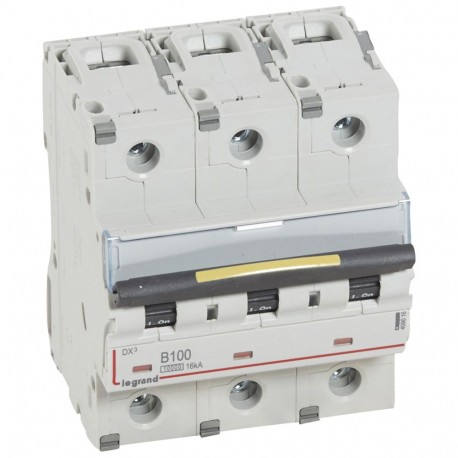

409016 LEGRAND MAGNET DX3 10/16kA B 3P 100A

409016

409016

LEGRAND

1 Pcs.

MAGNET DX3 10/16kA B 3P 100A MCB - DX³ 10000 - 16 kA - 3P 400 V~ - 100 A - B curve DX³ 10000/16kA Circuit Breaker - 3P - 400V~ - 100A - B curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 409016 is a 3-pole magnet DX3 circuit breaker designed to automatically interrupt electrical circuits during overloads or short-circuit faults. Protective switching devices of this nature are widely deployed in commercial and industrial distribution panels to safeguard wiring infrastructure and connected machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 6 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 47 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 3
  • Width in number of modular spacings (EF002950): 4.5
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 6 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.04
  • Weight (g)708.00
Product characteristics
3-pole 400 V~
  • B curve
  • Nominal rating In : 100 A
  • Number of modules : 4.5
General characteristics
MCBs DX³ 10000 - 16 kA - thermal magnetic circuit breakers from 1 A to 125 A - B and C curves
  • Conform to IEC 60898-1
  • Compatible with prong-type and fork type supply busbars (except 80 A, 100 A and 125 A MCBs)
  • Breaking capacity
  • 10000 - IEC 60898-1 - 400 V~
  • 16 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
