LEGRAND 408967 408967 LEGRAND MAGNET DX3 10/16kA B 2P 100A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

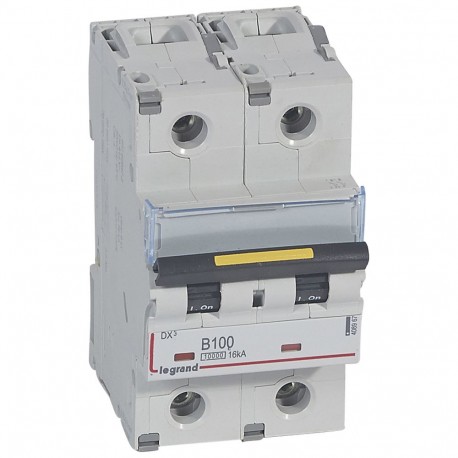

408967 LEGRAND MAGNET DX3 10/16kA B 2P 100A

408967

408967

LEGRAND

1 Pcs.

MAGNET DX3 10/16kA B 2P 100A MCB - DX³ 10000 - 16 kA - 2P - 230/400 V~ - 100 A - B curve DX³ 10000/16kA Circuit Breaker - 2P - 230/400V~ - 100A - B curve

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.605
  • Weight (g)480.00
Product characteristics
2-pole 230/400 V~
  • B curve
  • Nominal rating In : 100 A
  • Number of modules : 3
General characteristics
MCBs DX³ 10000 - 16 kA - thermal magnetic circuit breakers from 1 A to 125 A - B and C curves
  • Conform to IEC 60898-1
  • Compatible with prong-type and fork type supply busbars (except 80 A, 100 A and 125 A MCBs)
  • Breaking capacity
  • 10000 - IEC 60898-1 - 400 V~
  • 16 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules

ETIM for 408967 Circuit breakers and fuses (EC000042)
Feature Name Feature Value
Explosion-proof (EF004663) No
Connectable conductor cross section solid-core (EF007337) 6 mm²
Ambient temperature during operating (EF007515) -25 °C
Degree of protection (IP) (EF005474) IP20
Concurrently switching neutral conductor (EF005997) No
Voltage type (EF000187) AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) 10 kA
Additional equipment possible (EF008148) Yes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) 16 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) 32 kA
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Number of protected poles (EF005548) 2
Frequency (EF000416) 50 Hz
Built-in depth (EF000218) 44 mm
Number of poles (total) (EF008618) 2
Pollution degree (EF002570) 2
Width in number of modular spacings (EF002950) 3
Rated insulation voltage Ui (EF001366) 500 V
Connectable conductor cross section multi-wired (EF007343) 6 mm²
Rated current (EF000227) 100 A
Flush-mounted installation (EF007517) Yes
Release characteristic (EF000889) B
Rated voltage (EF000228) 400 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
